Stomach tube and duodenal tube

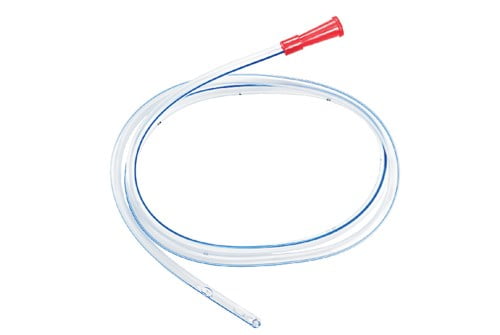

Stomach tube

Stomach tube and duodenal tube

  • made of medical PVC
  • frosted surface
  • colour coded connectors
  • two side eyes
  • depth mark at 450, 550, 650, 750 mm from distal end
  • atraumatic tip
  • kink-resistant
  • X-ray line
  • available different length
  • latex free
  • DOP free
  • sterile, single use



size [CH/FG] colour reference number
X-ray line 800 mm X-ray line 1000 mm introducer and X-ray line 1000mm
8 blue 55-0800 56-0800 -
10 black 55-1000 56-1000 56-1060
12 white - 56-1200 56-1260
14 green - 56-1400 56-1460
16 orange - 56-1600 56-1660
18 red - 56-1800 56-1860
20 yellow - 56-2000 56-2060
22 pink - 56-2200 56-2260
25 deep-blue - 56-2500 56-2560
28 green - 56-2800 -
30 gray - 56-3000 -
32 black - 56-3200 -
35 light-grey - 56-3500 -

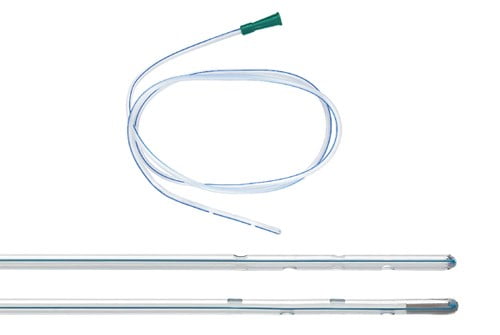

Duodenal tube

Stomach tube and duodenal tube

  • made of medical PVC
  • frosted surface
  • colour coded connectors
  • four lateral eyes
  • length 1250 mm
  • depth mark at 450, 550, 650, 750 mm from distal end
  • kink-resistant
  • with X-ray line
  • available versions:
    •   with introducer and X-ray line
    •   with central opening and X-ray line
    •   with olive and X-ray line
  • latex free
  • DOP free
  • sterile, single use



size [CH/FG] colour reference number
X-ray line introducer and X-ray central opening and X-ray line olive and X-ray line
8 blue 60-0800 60-0860 61-0800 62-0800
10 black 60-1000 60-1060 61-1000 62-1000
12 white 60-1200 60-1260 61-1200 62-1200
14 green 60-1400 60-1460 61-1400 62-1400
16 orange 60-1600 60-1660 61-1600 62-1600
18 red 60-1800 60-1860 61-1800 62-1800
20 yellow 60-2000 60-2060 61-2000 62-2000
22 violet 60-2200 60-2260 61-2200 -
25 deep-blue 60-2500 60-2560 61-2500 -
